Yohako Solar Panel 620W
ZX620M-132
Description

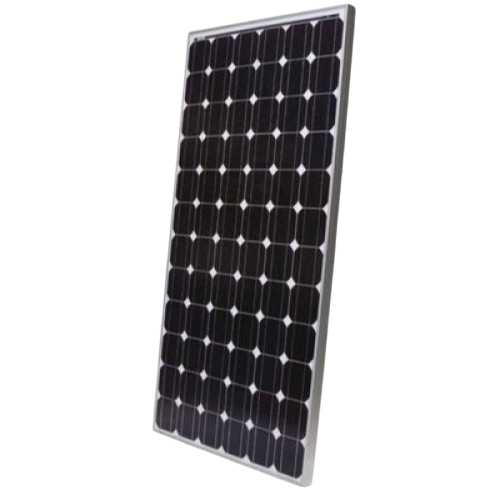

Yohako Ultra-High Power Solar Panel - Model ZX620M-132 Product Description: The Yohako ZX620M-132 represents a new level of power and efficiency in solar technology. With a massive 620W rating and a 132-cell design, this panel is designed for maximum energy output in a streamlined form. This ultra-high-power module leverages advanced technology to achieve higher efficiency and lower operating costs. Designed to excel in diverse environments, it is ideal for large-scale utility projects and commercial installations looking to optimize solar power generation. The ZX620M-132 features a high-performance design that withstands challenging conditions while delivering peak energy yields.
Specification
Model Type
ZX620M-132
Maximum Power (Pmax)
620W
Maximum Power Voltage (Vmp)
40.74V
Maximum Power Current (Imp)
15.22A
Open Circuit Voltage (Voc)
49.08V ± 3%
Short Circuit Current (Isc)
16.20A ± 3%
Maximum Series Fuse
30A
Maximum Temperature
85°C
Maximum System Voltage
1500VDC
Dimensions
18X3CM
